Enclosures

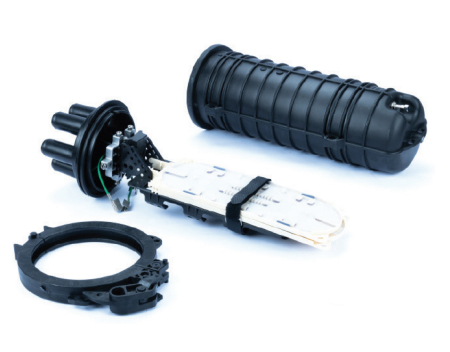

Heat Shrink Closure

Heat Shrink Type Closure (FSC) consists of outer cases, gaskets, trays and inner kits. The outer case consists of body and cable inlet part and is constructed of highly chemical resistant material.

The ribbed body has high mechanical strength against impact.

The HST closure has an air valve on its cover for checking air pressure drop, reliable moisture tight housing with hot-melt type sealing, and efficient fiber management through a splice tray holding structure and easy clamping of tension member & grounding.

Protection class IP68.

• 24F Mid Range HST Closure (Loose tube) Scope of supply:
• • Splice closure fully assembled x 1
• • Splice trays with cover x 2
• • Cable sealing kit for round port x 4
• • Cable sealing kits for oval ports x 1

• 48F Mid Range HST Closure (Loose tube) Scope of supply:
• • Splice closure fully assembled x 1
• • Splice trays with cover x 4
• • Cable sealing kits for oval ports x 4
• • Cable sealing kit for round port x 4

• 96F Mid Range HST Closure (Loose tube) Scope of supply:
• • Splice closure fully assembled x 1
• • Splice trays with cover x 8
• • Cable sealing kit for round port x 4
• • Cable sealing kits for oval ports x 1

• 48F Regular HST Closure (Loose Tube) Scope of supply:
• • Splice closure fully assembled x 1
• • Splice trays with cover x 4
• • Cable sealing kit for round port x 6
• • Cable sealing kits for oval ports x 2

Mechanical Closure

Mechanical Closure consists of outer cases, gaskets, trays and inner kits. The outer case consists of body and cable inlet part and is constructed of highly chemical resistant material.

It has four round ports one oval ports, in which sealing method is done mechanically i.e through rubber seals & dedicated washer and the ports are tightened with closing cap.

This closure allows user to work on the dedicated port multiple times as per the field/O&M requirement.

Protection class IP68

• 24F Mechanical Closure (Loose Tube) Scope of supply:
• • Mechanical clyosure fully assembled x 1
• • Splice/Splitter trays x 2
• • Mechanical sealing kit for oval port x 1
• • Mechanical sealing kit for round ports x 4

• 48F Mechanical Closure (Loose Tube) Scope of supply:
• • Mechanical closure fully assembled x 1
• • Splice/Splitter trays with transparent cover x 6
• • Mechanical sealing kit for oval port x 1
• • Mechanical sealing kit for round ports x 4

• • Mechanical closure fully assembled x 1
• • Splice/Splitter trays with transparent cover x 6
• • Mechanical sealing kit for oval port x 1
• • Mechanical sealing kit for round ports x 14

• FDMS Closure – Type II Scope of supply:
• • FDMS closure fully assembled x 1
• • Splice trays with transparent cover x 14
• • Mechanical sealing kit for round ports x 41

• Compact rectangular design.

• Mechanical sealing technology.

• Flexible configurable cable entries.

• Dedicated splitter area inside splitter trays.

• User friendly thanks to light weight

• Robust & rigid with rib design construction.

• Cable entry range from Ø 3.0mm up to 15.mm.

• Compatible with most common cable types: e.g. loose tube, central core and ribbon fiber.

• Suitable for both Armored and unarmored Cable entry with earthing provided for armored cable.

• Designed which allows usage of cables from 3.0mm to 15mm.

• 10 round ports and 1 oval port

• Compatible for both underground and Ariel cable.

• Dedicated storage location

• Reduced installation time

• Flat closure fully assembled x 1
• • Splice trays with cover x 3
• • Splitter trays with cover x 4
• • Mechanical sealing kit for round port x 8
• • Mechanical sealing kits for oval ports x 1
