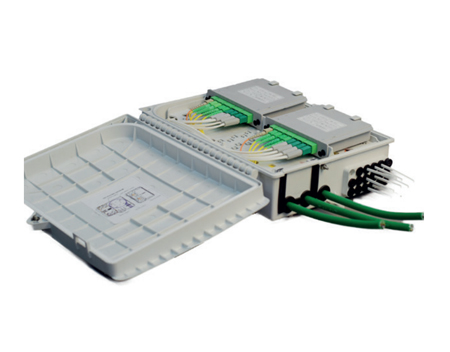

Fiber Access Terminal - FAT
R&M FAT boxes are made from high quality plastic. This is a perfect cost-effective solution in the FTTx networks for both indoor and outdoor environments
In built splice tray, a cable loop can be stored for mid-span access
Projection on Top cover to cover cable entry points for better aesthetics and to avoid spillage of water.
Inbuilt locking latch inside inlay to avoid shake & easy opening
Inbuilt pole mounting slots for easy installation on Pole
Material: UV resistant FR grade plastic
Protection Class IP 65
16F FAT
• Suitable for mounting 2 nos. of LGX Splitter Module
• 1 mid span, 1 normal cable entry port and 16 drop cable entry port.
• Splice Capacity up to 48F
8F FAT
• Suitable for mounting 1 nos. of LGX Splitter Module
• 1 mid span, 1 normal cable entry port and 8 drop cable entry port.
• Splice Capacity up to 24F
6F OTB
• Suitable for mounting 6 SCAPC Adapters (Max 8 Nos.)
• 1 mid span, 1 normal cable entry port and 8 drop cable entry port.
• Splice Capacity up to 24F
- 16F FAT (Dual FAT) Scope of supply
- • FAT Bottom with downholdersx1
- • FAT cover with lock x 1
- • FAT inlay x 1
- • Installation Manual x 1
- • Standard accessories set x 1
- 8F FAT (Single FAT) Scope of suppvly
- • Single FAT Bottom with downholdersx1
- • Single FAT cover with lock x 1
- • Single FAT inlay x 1
- • Installation Manual x 1
- • Standard accessories set x 1
- Optical Terminal Box Scope of supply
- • SCAPC SM SX Adapter x 6
- • SCAPC SM SX Pigtails x 6
- • OTB bottom x 1
- • OTB cover with lock x 1
- • OTB inlay with hinge holder x 1
- • Holder for mounting LGX Module x 1
